Digital Analysis Software

Fuji Digital Analysis System for Prescale FPD-8010E

The FPD-8010E converts Prescale pressure values into numerical data and is a pressure mapping analysis system that allows various methods of analysis. In order to make Prescale data even more useful, it will meet your requirements for converting to numerical data, saving data and performing data analysis. Click on any of the images below for a large picture.


Overall Measurement

Various data such as average pressure and maximum pressure are displayed.

Partial Enlargement

The specified field is enlarged. (×4,×8,×16) Pin point pressure values can be displayed on the image.

Changing the pressure Bar Setting

The colored pressure bar and the pressure bar boundary can be changed.

Pressure Cross Section

Pressure distribution on a line passing through a specified point is shown on a line graph.

Wire Frame

Pressure is displayed in 3-D format.

Pressure Distribution Animation

Step-by-step pressure values are displayed in an animated format.

Text Data Output

Pressure data is exported to a text file.

Total Weight Distribution

The upper and left segments of the total pressure are displayed on a bar graph.

Histogram Analysis

Pressure on the circumference is displayed as a histogram.

Printing and Saving

The displayed screen and data can be printed. After stored data is re-loaded and displayed, you can store it.


Main FunctionsPrescale image input function Pressure distribution display function/ Pressure data output function 3D display function / polar coordinate display function
Scan SizesSingle Read : 297mm × 210mm (11.7 in × 41.3 in)
Maximum : 891mm × 1050mm (35.1 in × 41.3 in)
Resolution0.125 (200dpi), 0.25 (100dpi), 0.5, 1, 2mm sq.
Dedicated Cover Weight570g
Dedicated Cover Dimensions70 (H) × 290 (W) × 364 (D) mm
Packed ItemsDedicated software, dedicated cover, calibration sheet, installation manual, software license.
ScannerPlease ask your dealer for information on recommended scanner types.

UV light distribution analysis system FUD-7010E

Management by converting colors into numeric values with analysis systems.

In this system, exclusive analysis software is used along with a special scanner. The system makes it possible to scan the color of UVSCALE, convert it into UV light values, analyze UV light distribution, and save them. The separation accuracy of the densities can be improved so sections that cannot be judged visually can be analysed. Managing numerical data can have the following advantages: Internal inspection standards can be set. Analysis results can be shared. Digitizing data makes it possible to compare it to past data.

System Configuration

Exclusive Software (CD-Rom)

Converts UVSCALE density values into UV light amount.

Dedicated Cover

This manuscript hold-down scanner cover improves date-read precision.

Calibration Sheet

The calibration sheet limits scanner-read errors to a fixed range.

Analysis system measurement features

Division Color Bar Setup

Light amounts measured are illustrated in a graph by colors. Various settings, such as scale type (log scale, equal magnification scale), upper and lower limits of scale bars, intervals, and color, can be freely set based on measurement conditions.

Log Scale
Equal Magnification scale

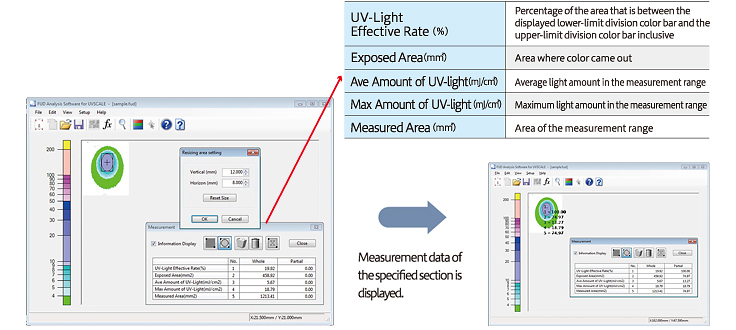

Measuring light amount

Data imported is converted into numerical values. Measurement data of the entire section and section specified with a rectangle or circle is displayed.

Log Scale

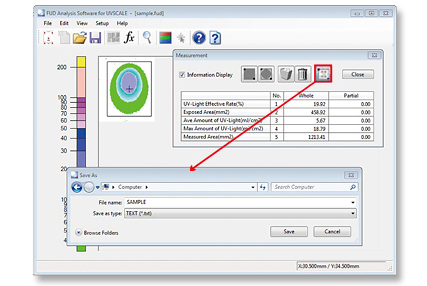

Rectangular Area Data Export Function

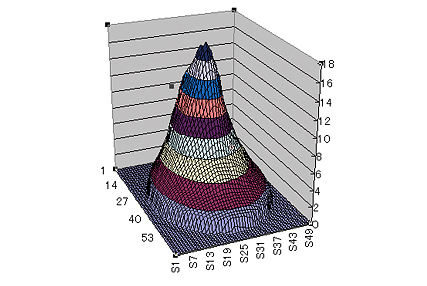

Results of partial measurement (rectangle) can be output in text data. Using Excel to graph the results—as shown on the right—makes it possible to see the light amount distribution in a way that is easy to understand.

How to use an analysis system

1)Irradiate light to a UVSCALE.

2)Set UVSCALE on the scanner (recommended model) and scan the color sample.

3)Analyze it on a PC in which the exclusive software has been installed.



Use a calibration sheet to correct variations caused by differences in scanners and conditions as much as possible and to stabilize measurement results.

Setting measurement conditions

Select UVSCALE type used, light source lamp, and sample name to be saved on the new creation screen.

Correction Value Setting

Entering a correction value can correct differences in light amount values caused by differences in illuminometers, temperature, and other measurement conditions to obtain an appropriate value.


Product Name
FUD-7010E ver.
Exclusive software (CD- ROM), Dedicated cover, Calibration sheet
Measurable UV Lamp
High-pressure mercury lamp, metal halide lamp, low-pressure mercury lamp, UV-LED (365 nm)
Main Functions
Analyzing UVSCALE images (measuring accumulated light amount, displaying light amount distribution, saving data, data export)
Scan Sizes Depending on the scanner used
0.125mm (200dpi) 0.03125mm (800dpi)
Applicable Scanner Epson V370, V37 and V600

Recommended Software Environment

Windows 7, 8, 8.1, 10 (32/64bit)​
Clock: 2GHz or higher
2GB or more
Disk space: 2GB or more
Display 1024 × 768 60,000 colors or more
